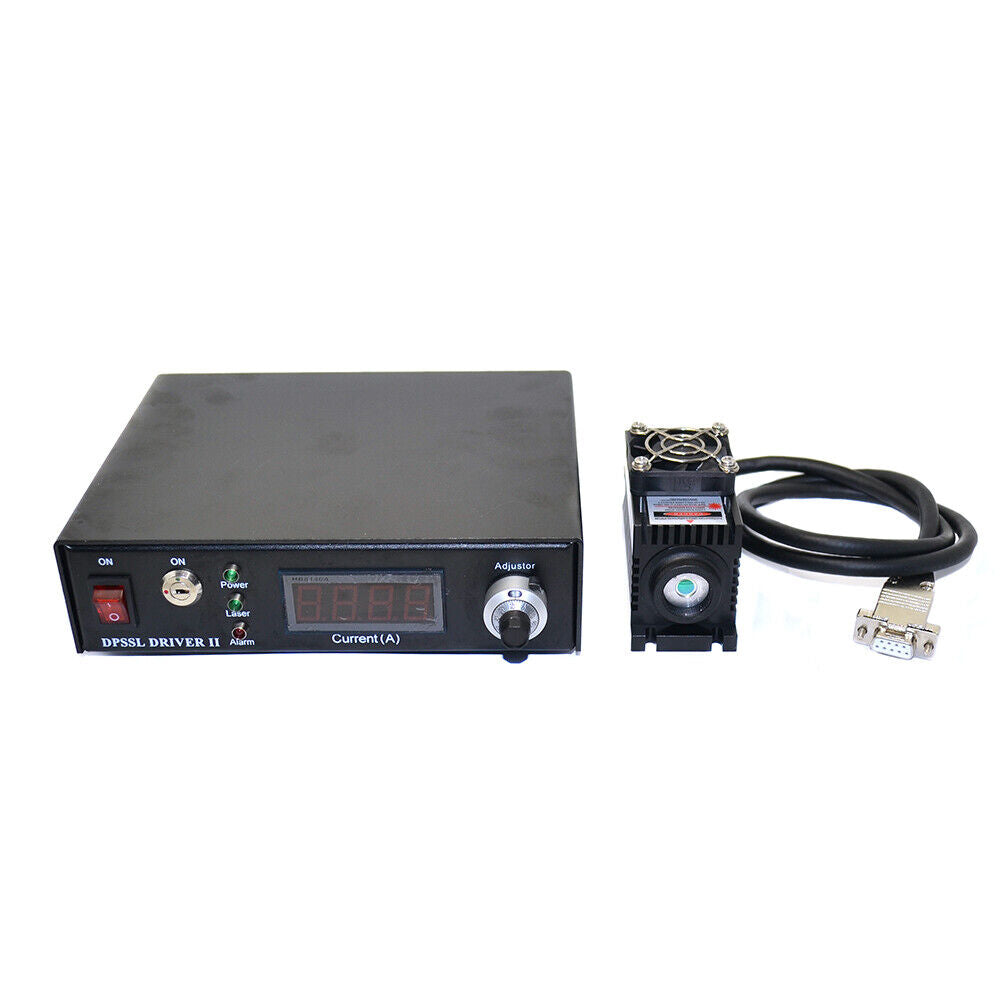

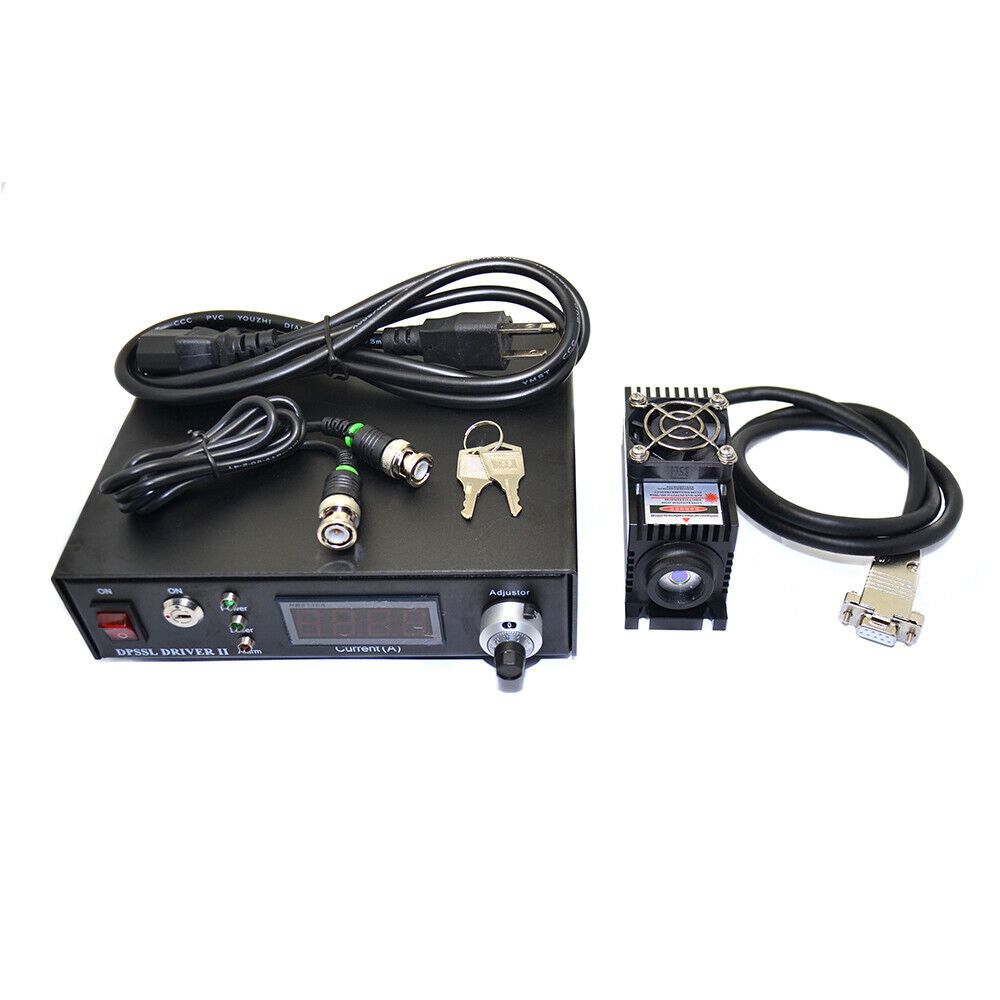

1064nm 1400mw 1.4W Infrared Laser Dot Module Analog TEC Cooling Power Supply C
1064nm 1400mw 1.4W Infrared Laser Dot Module Analog TEC Cooling Power Supply C
Couldn't load pickup availability
Specification:
Model No. |

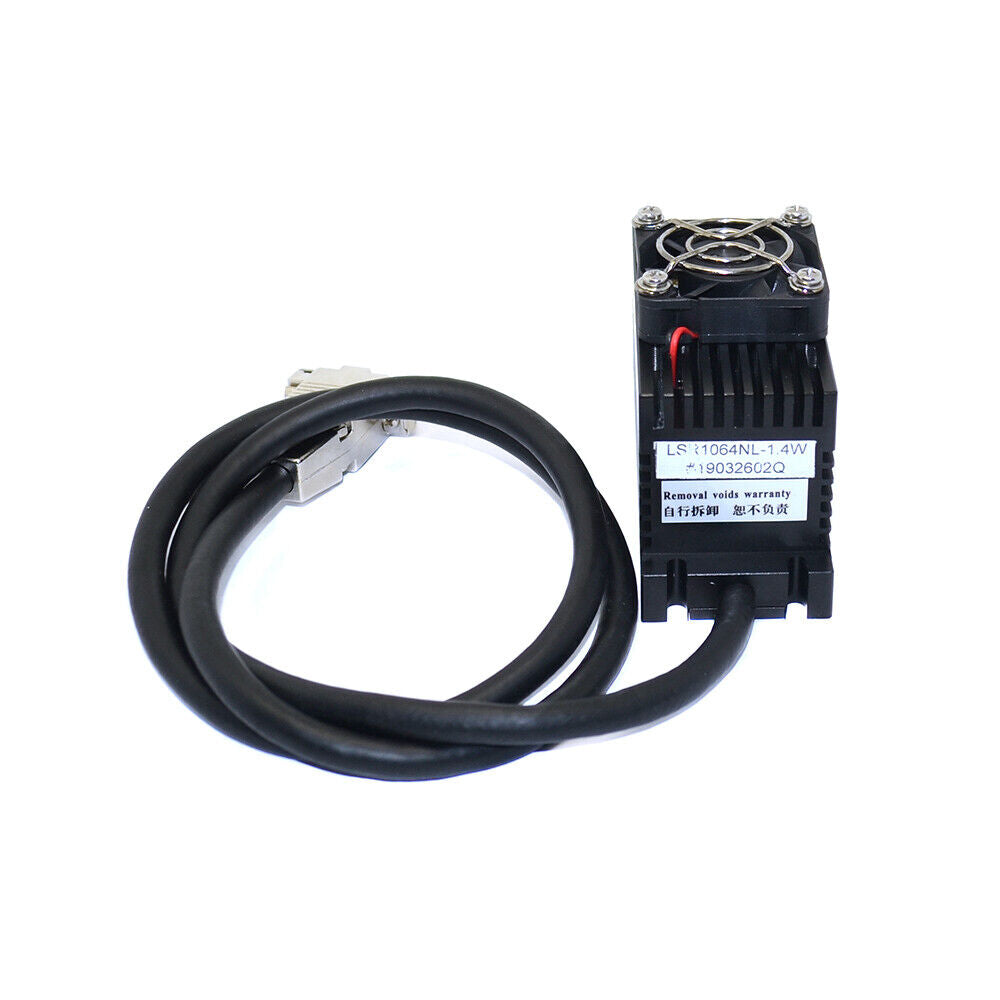

LSR1064NL |
Wavelength |
1064 nm |
Spatial Mode |
TEM00 |
Output Power |
1400mw |
Operation Mode |
CW or Modulation |
Modulation |
Analog 1Hz~30KH |
Polarization |
100:1 |
Beam Spot Shape |
Circular, aspect ratio<1.1:1 |
Pointing Stability |
<0.05 mrad |
Beam Diameter(1/e2) |
2 mm |
Beam Divergence |
1.2 mrad |
Power Stability* |
<±3% per 2 hrs |
Temperature Stabilizing |
TEC |
Warm Up Time |
<5 minutes |
Beam Quality (M2) |
<1.2 |
Optimum Operating Temperature |
20~30oc |
Storage Temperature |
10~50oC |
MTTF |
10,000 hrs |

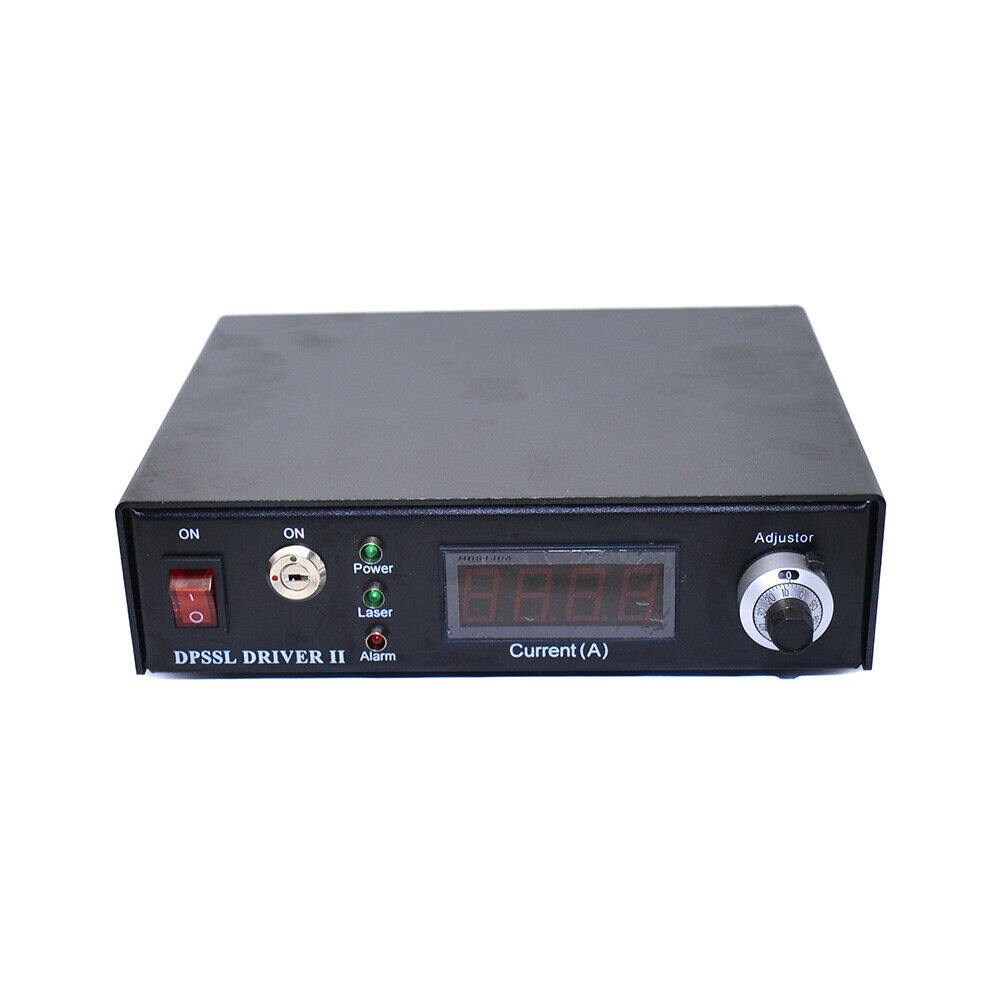

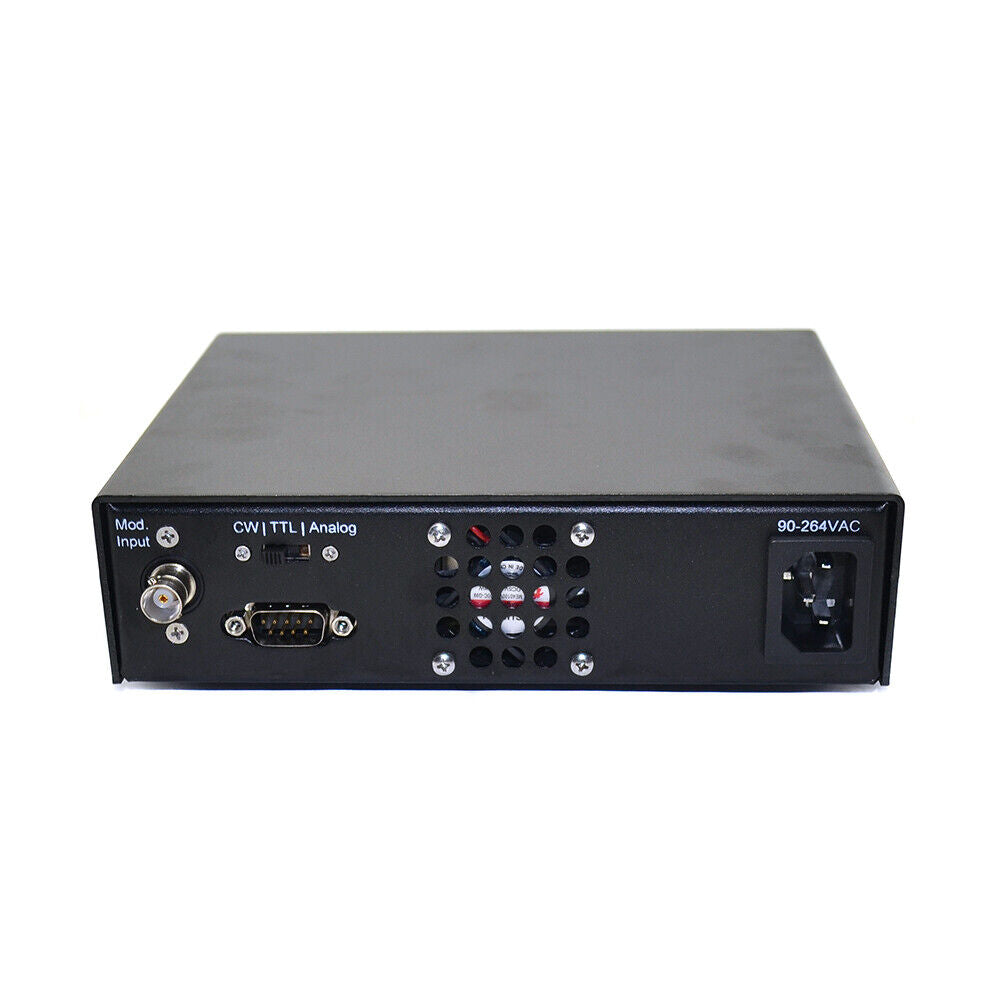

Power Supply |
A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
|
B. Lab type LSR-PS-IIS:104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input | |
|
C. Lab Adjustable type LSR-PS-II: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input | |
Modulation |
0~30khz Analog or TTL |
Features:
Adjustible focuse
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
