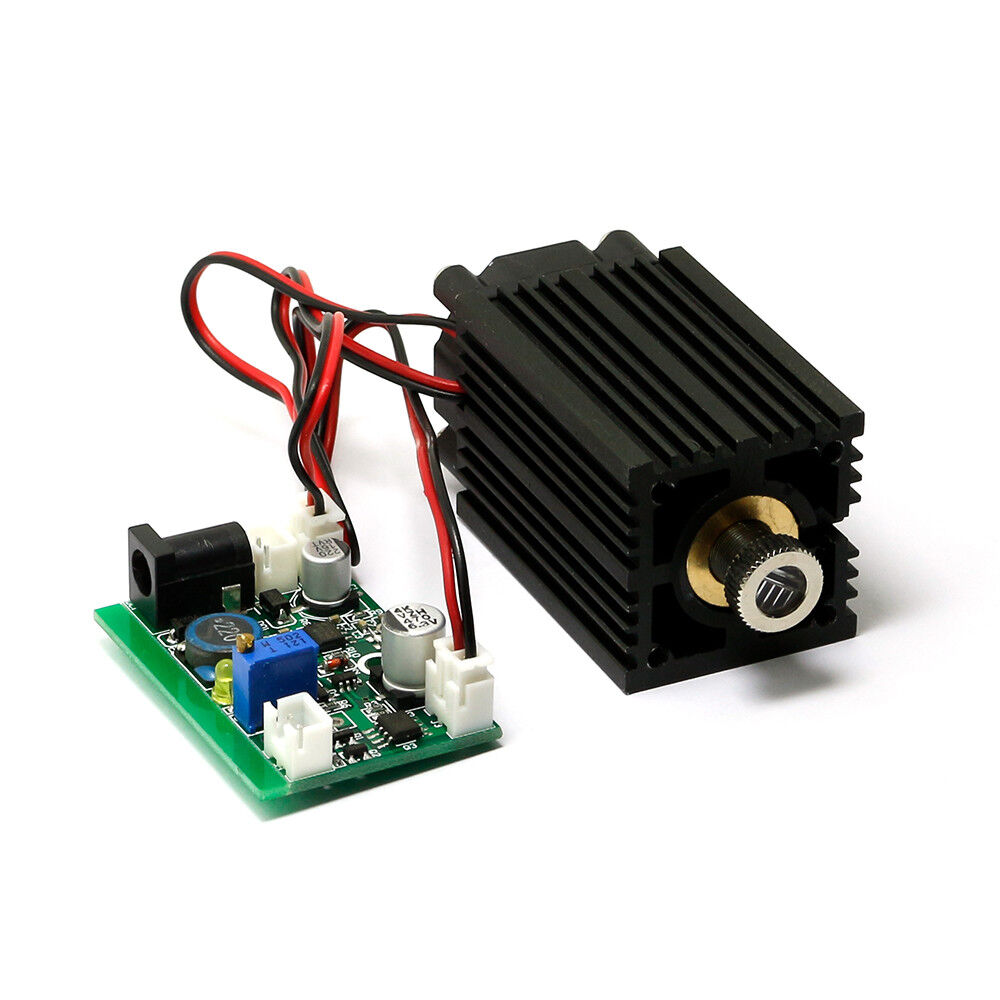

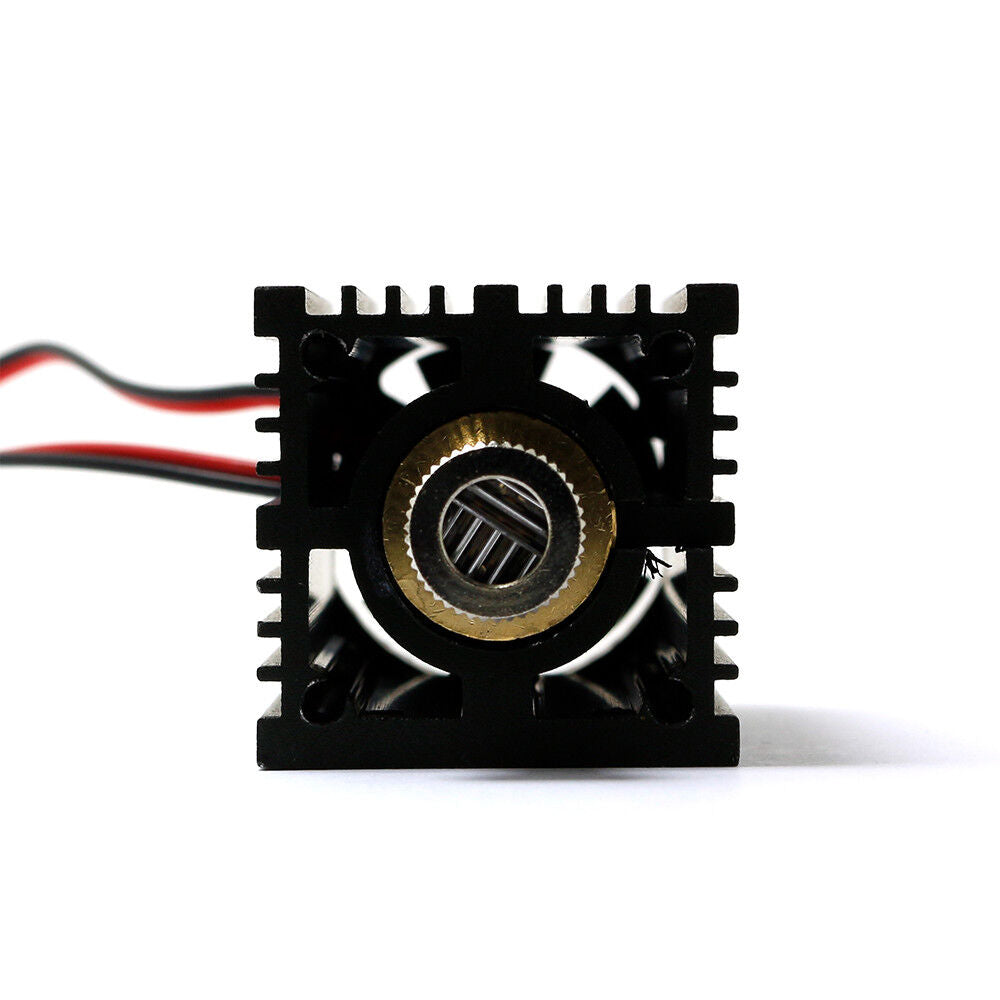

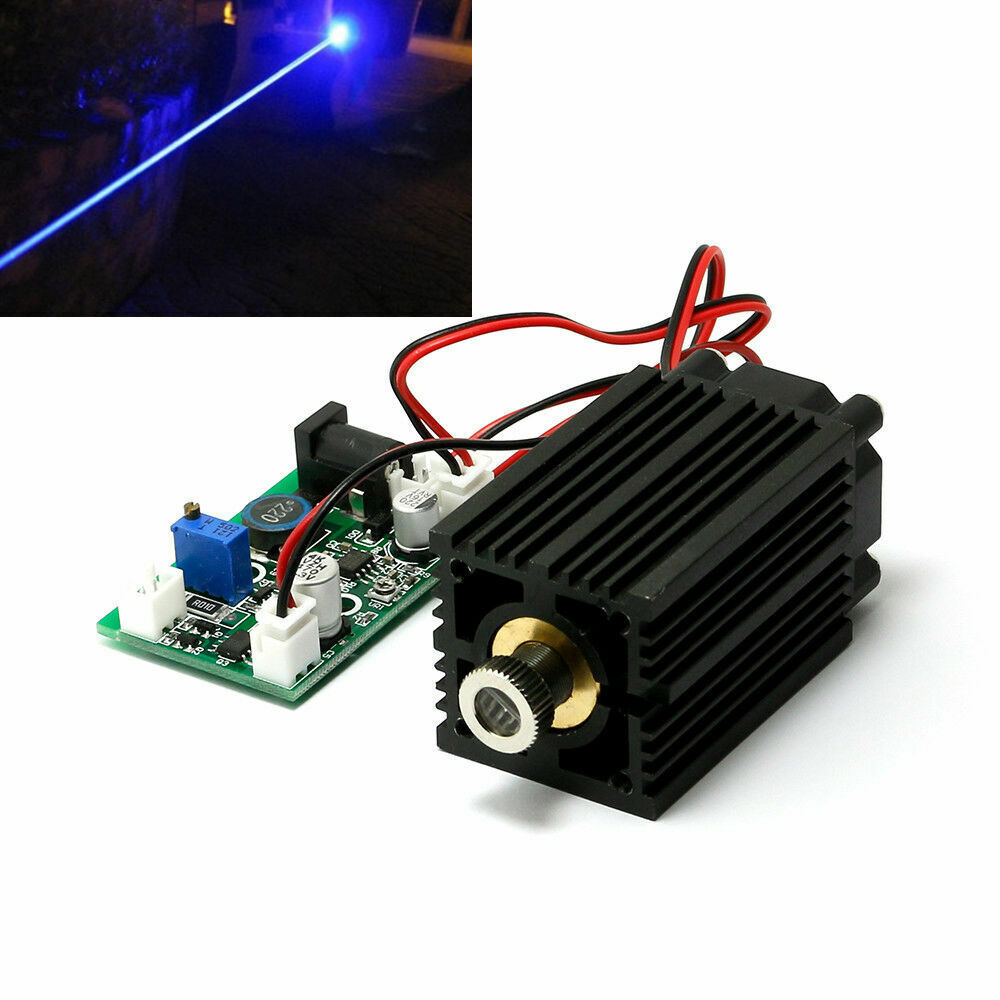

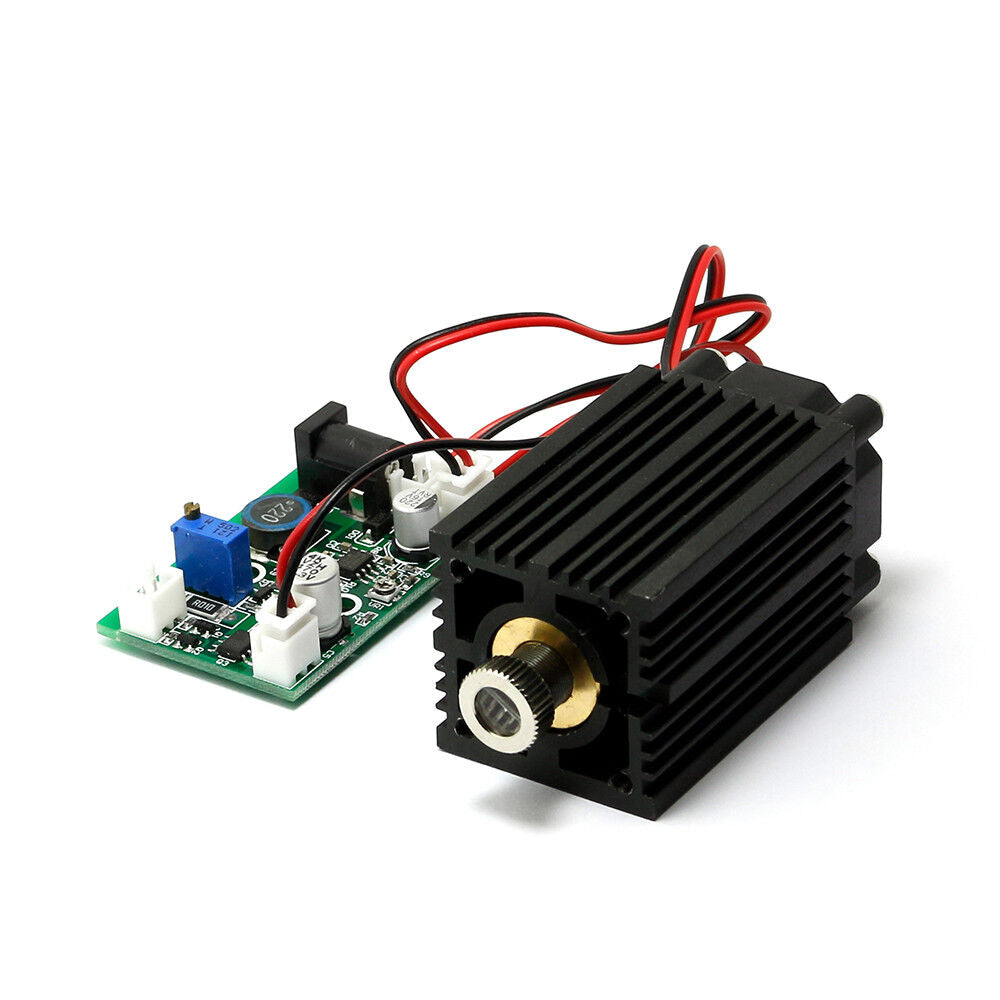

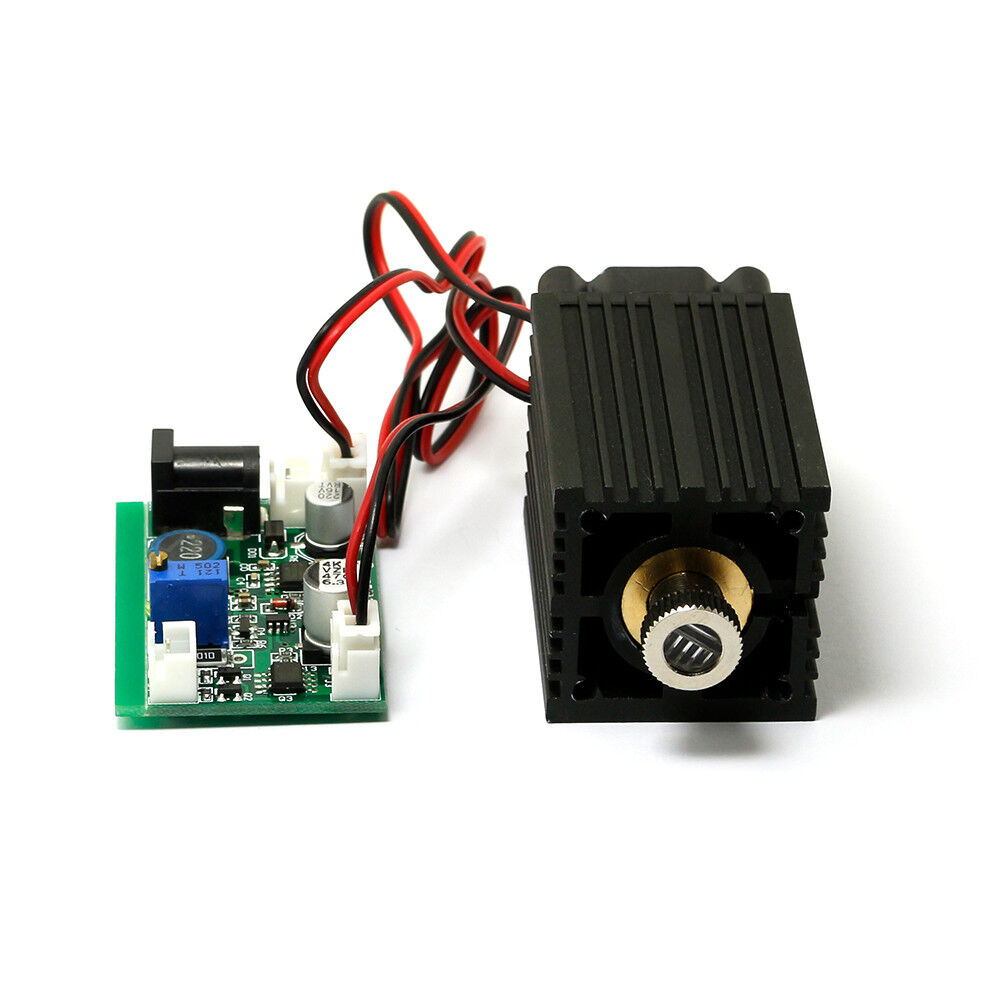

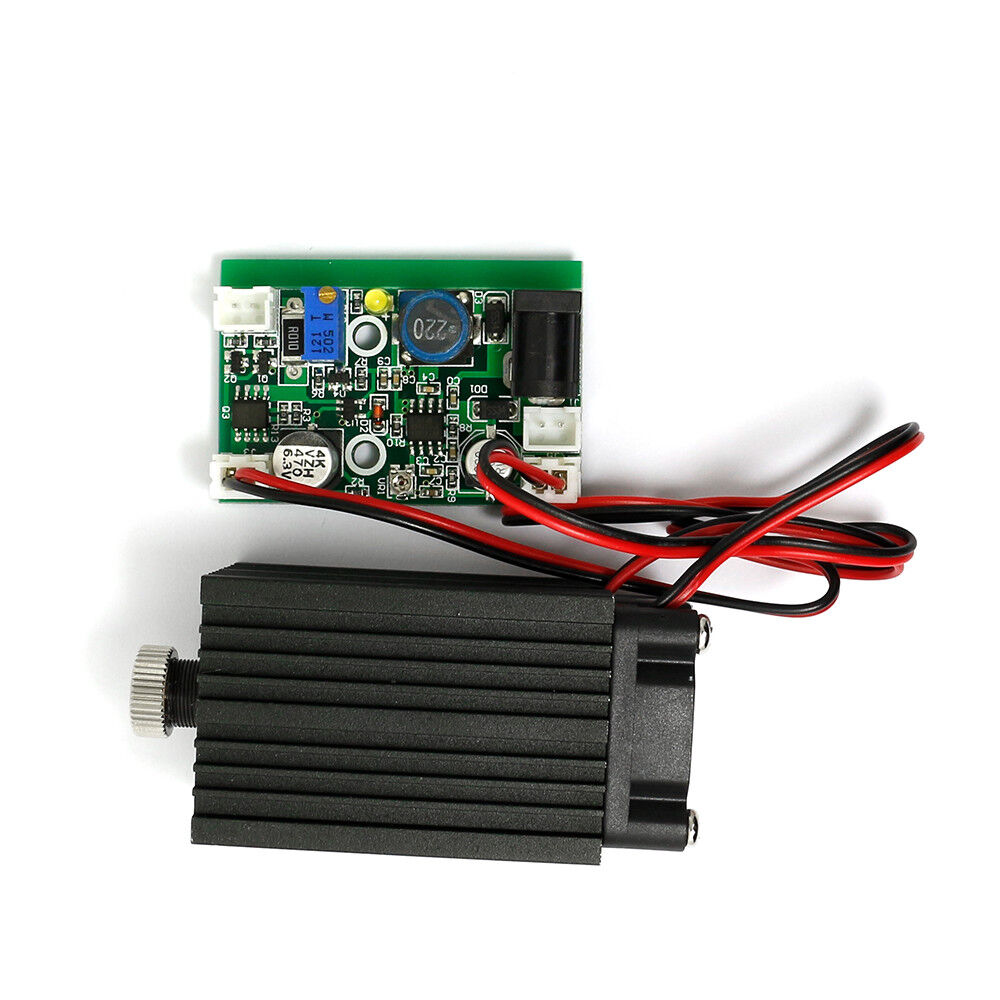

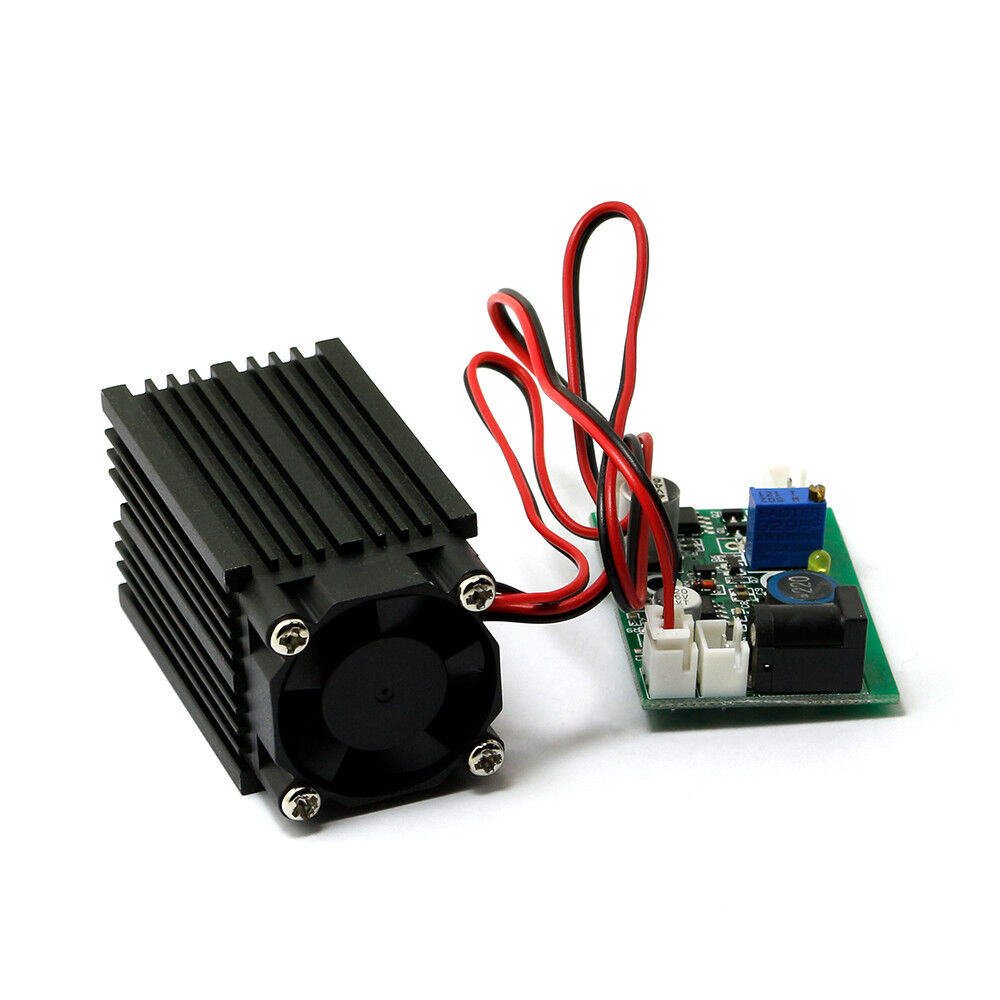

12V 450nm 2W 2000mw Blue Laser Dot Module Adjustable w/Driver & TTL Wood Carving
Specification:
Host Size(Length/wide/high): 65mm * 33mm * 33mm
Circuit Dimensions(length/wide): 45mm * 34mm
Output Wavelength: 445nm ~ 450nm
Output Power: <2W
Spot Zize: Focusable
Diode Type: Imported Nichia NDB7875
Cooling Method: Aluminum Heat
Modulation Frequency: Can be Modulated
Operating Characteristics: continuous work
Finish: Black
Housing Material: Aluminum
Control Circuit: constant current
Reverse Polarity Protection: with automatic identification of positive and negative
Operating Voltage: DC = 12V
Working Current: <2A
Warm-up Time: None
Operating Temperature: -10 ℃ ~ + 40 ℃
Storage Temperature: -10 ℃ ~ + 40 ℃
Structural Features: laser tube + lens + sinker housing
Warning:
1.The power supply is external
2.The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly, if you have any technical problems, please contact us in advance!
3.Please protect your eyes before 450nm Blue ray!
4.This laser module brings TTL modulation, can work long time, is really industry laser module!!
Package:1 x 12V 450nm 2W 2000mw Blue Laser Dot Module Adjustable w/Driver & TTL Wood Carving
1 x 12V Power Supply
