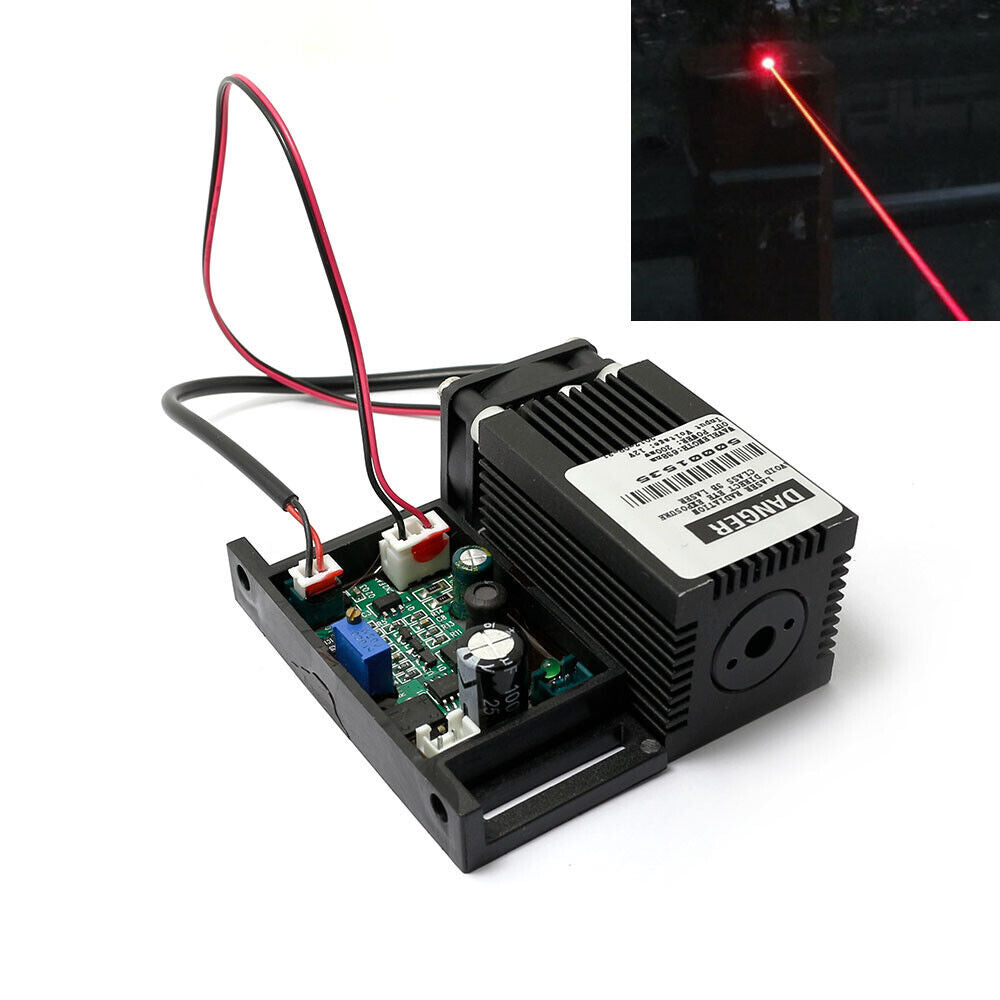

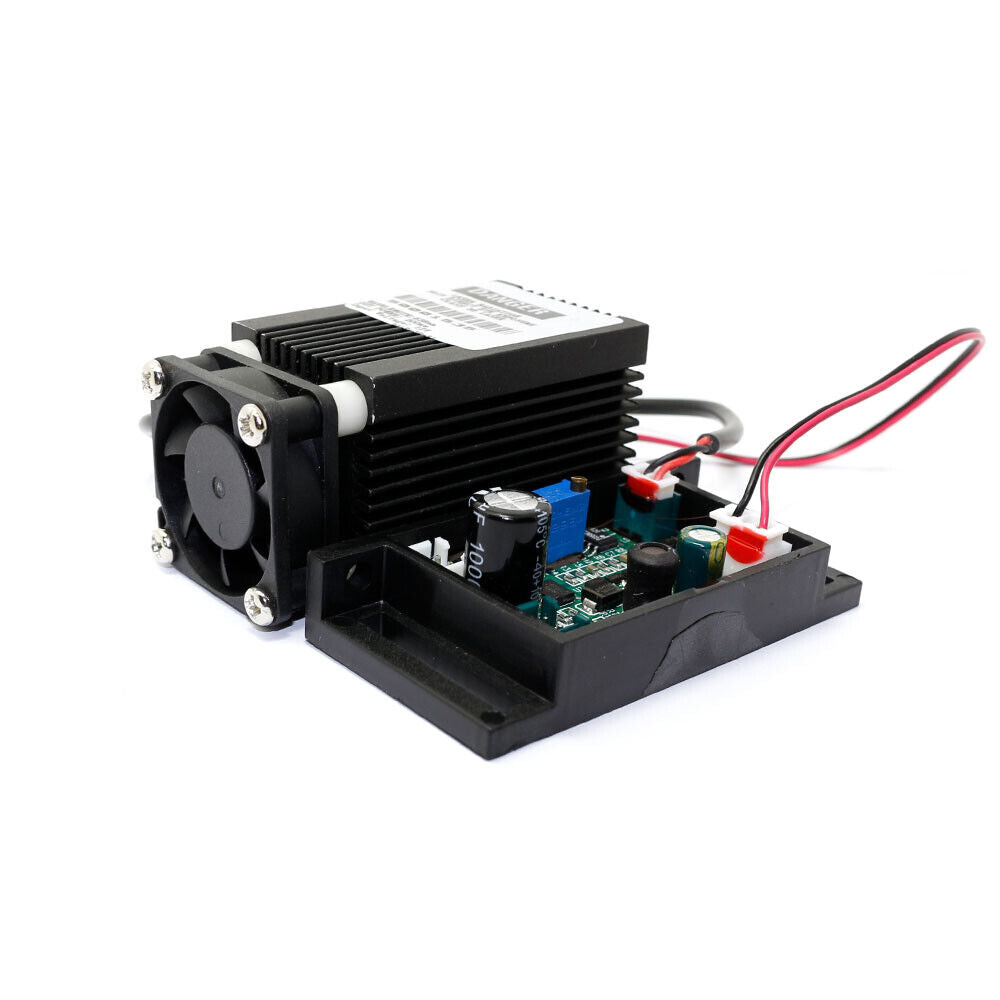

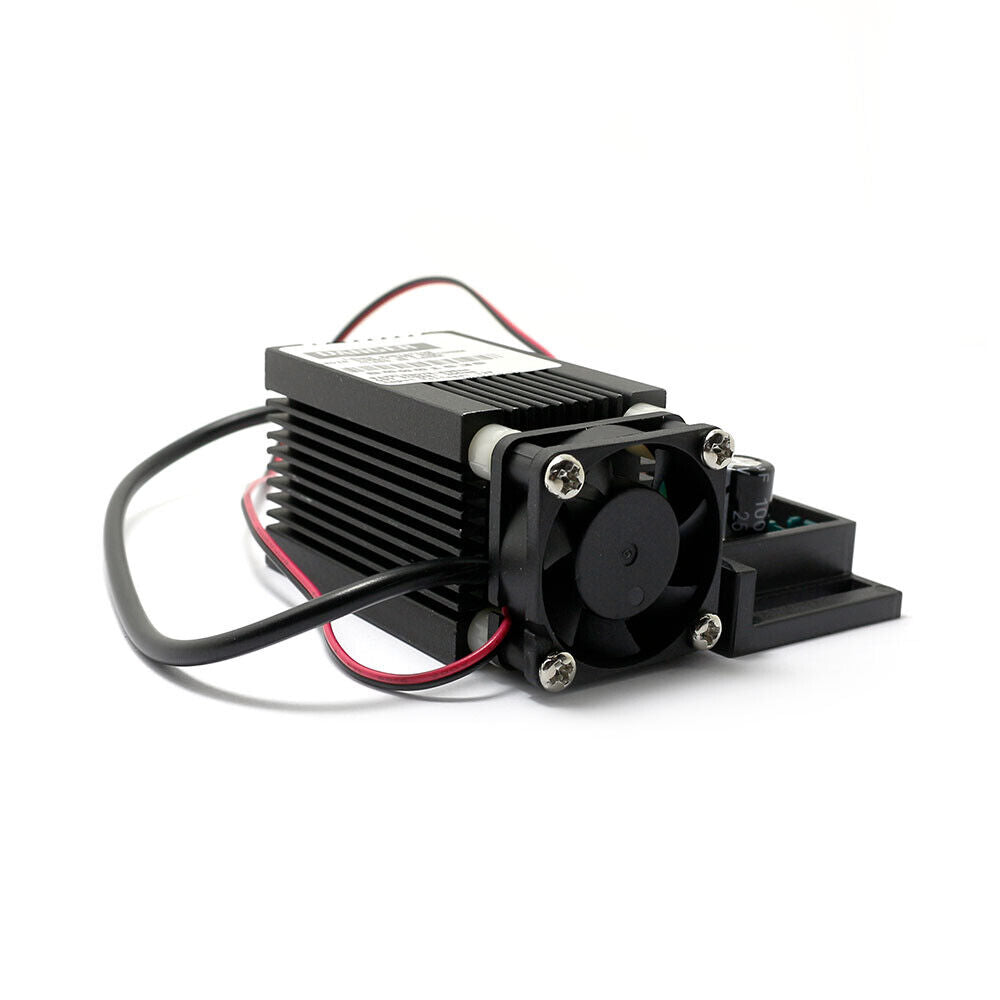

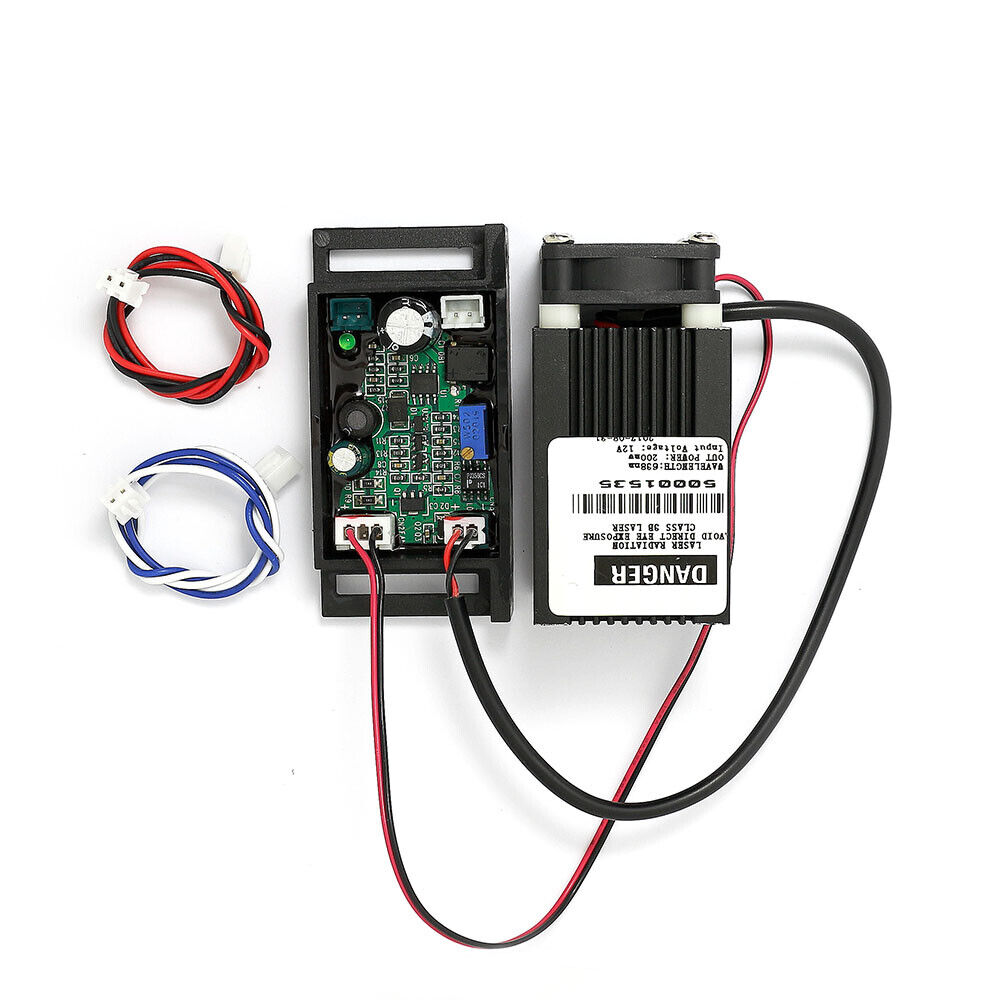

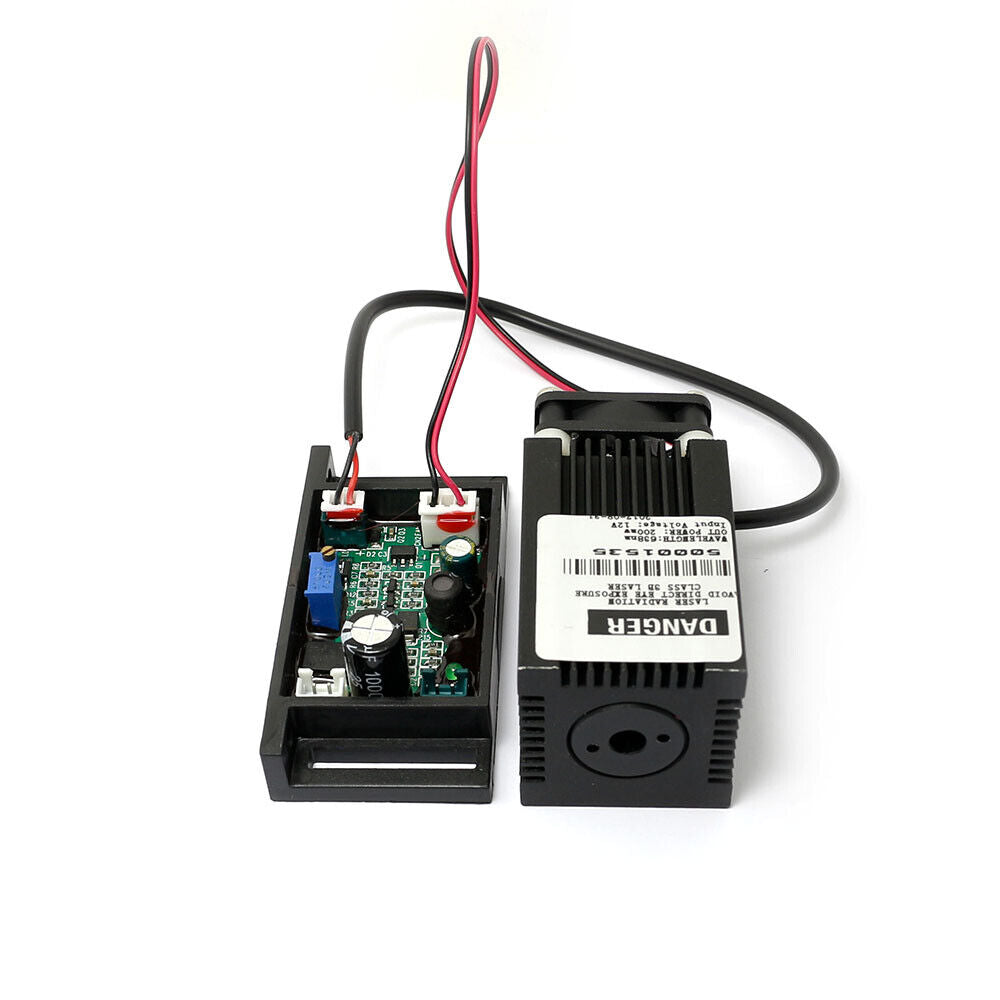

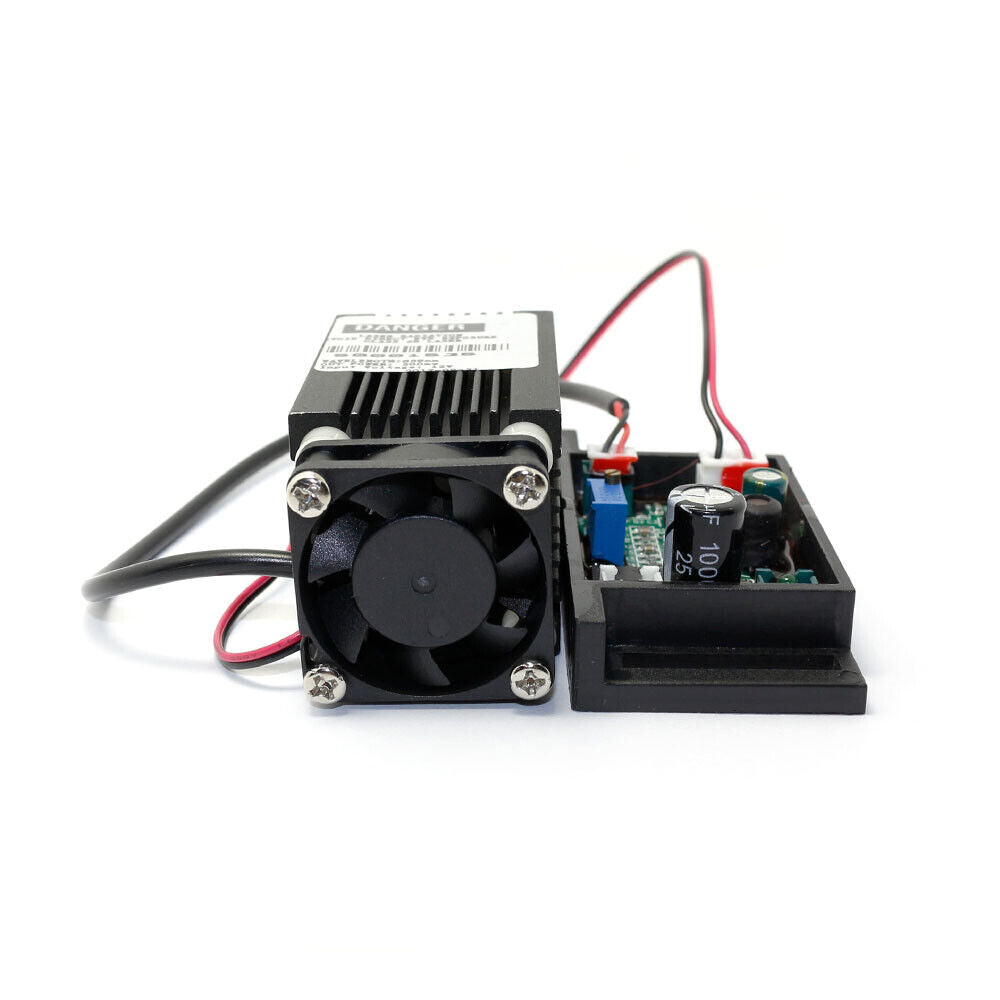

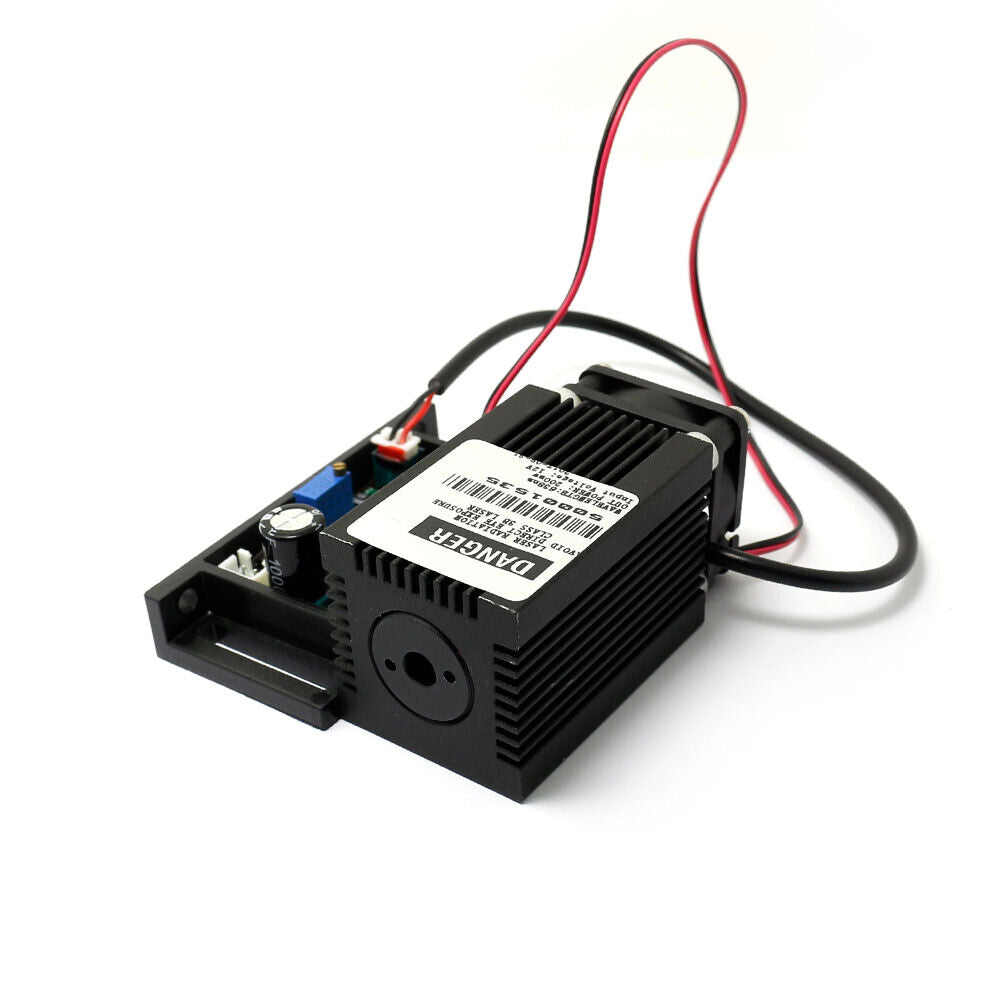

200mW 635nm 638nm Non-Focusable Laser Dot Module w/TTL

Features:

Wavelength 635nm-638nm

LD 200mw

Output Power >160mw

Working Voltage 12VAC DC

Working Current <300mA

Divergence Angle(mrad) <4mrad

Working Temperature -10degree~30dergee

TTL 0-5v DC/ 5V ON, OV OFF

Dimensions 30*30*50mm

Working Life >5000 Hours

Details:

1. This laser module can not work for a long time if there is no cooling device to keep the laser working under 30degree.

2. Please add a 12VDC power to this laser module. If you don't use TTL(Blue and White wires), please just leave them unconnected.
3. This is a laser module for Laser show. Please protect the lens and keep it clean and avoid dust.

4. Please wear 650nm laser protection goggles to protect your eyes when working on this module.

Package:

1 x 200mW 635nm 638nm Non-focusable Laser Dot Module w/TTL
