Description:
2. using the USB interface, can be directly plugged into the USB port on a computer chip can be programmed and read the complete work.
3. programmer support hot-swapping, that is the case of uninterruptible power programmer can be removed or placed on the chip.
4. can program the chip directly to the back of the package.
5.The programmer supports XP, VISTA, WIN7(32bit and 64 bit) system.
Programmer supports the chip:
24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512, 24C1024
Download
User manual (Please send us message for technical files after payment!Thanks! )
1)installation of the driver:
1.Unzip the document, and open ‘ USB driver’ document. Duel-click setup
2.Click ‘install’
3.Till success.
4.Install the usb 24 series item.
5.Choose ‘ auto installation’ till finished.
6.After the installation of the driver, please find: my computer-click right key-specification-hardware-device manager-USB-IO
2)24 series chips direction:
pin of the IC base:
<??>
The red pin is not exist.
3)application of read and write :
Copy software of usb 24 series’ to your hardware and click it to use it.
The following describes the function of each part of the application software:
chips selection: Choose the type of the chip you want to operate, select the storage chip and the chip on the IC base.
Status Indication : at the left bottom of the text used to display whether the current programmer has inserted , but does not detect whether the chip inserted .
Code editing area : the white rectangle in the middle area is used for displaying contents of the file opened or the contents of the data read out from the memory chip , it is hexadecimal code
Open button: Open the memory data files and displayed in the middle of the editing area , ready to write the chip . Generally it is BIN extension , there maybe exceptions
Save button : save the contents in the edit area to a file for later use . Most saved after read out of the data in the chip .
Read button : read out the contents of the chip and editor for editing or save a file , pay attention to the actual chip interface correspond to the chip
Write button : write the contents of the edit area into the chip , pay attention to the actual chip interface correspond to the chip. The write completed there will be prompted . If the length of the content in the editing area is less than the selected chip, only to write the length of the content of the editing area , the chip began to write from 0 address
empty button: check if it is blank , inspection completed there will be prompted to display test results
Clear button : Empty chip data , the chip is blank.
Proofreading button : compareing data in the chip with data in editing area , show the result . If the length of the content in the editing area is less than the selected chip , only to compare the length of the content of the editing area , the chip start from 0 address.
4)other ROM data
Package:

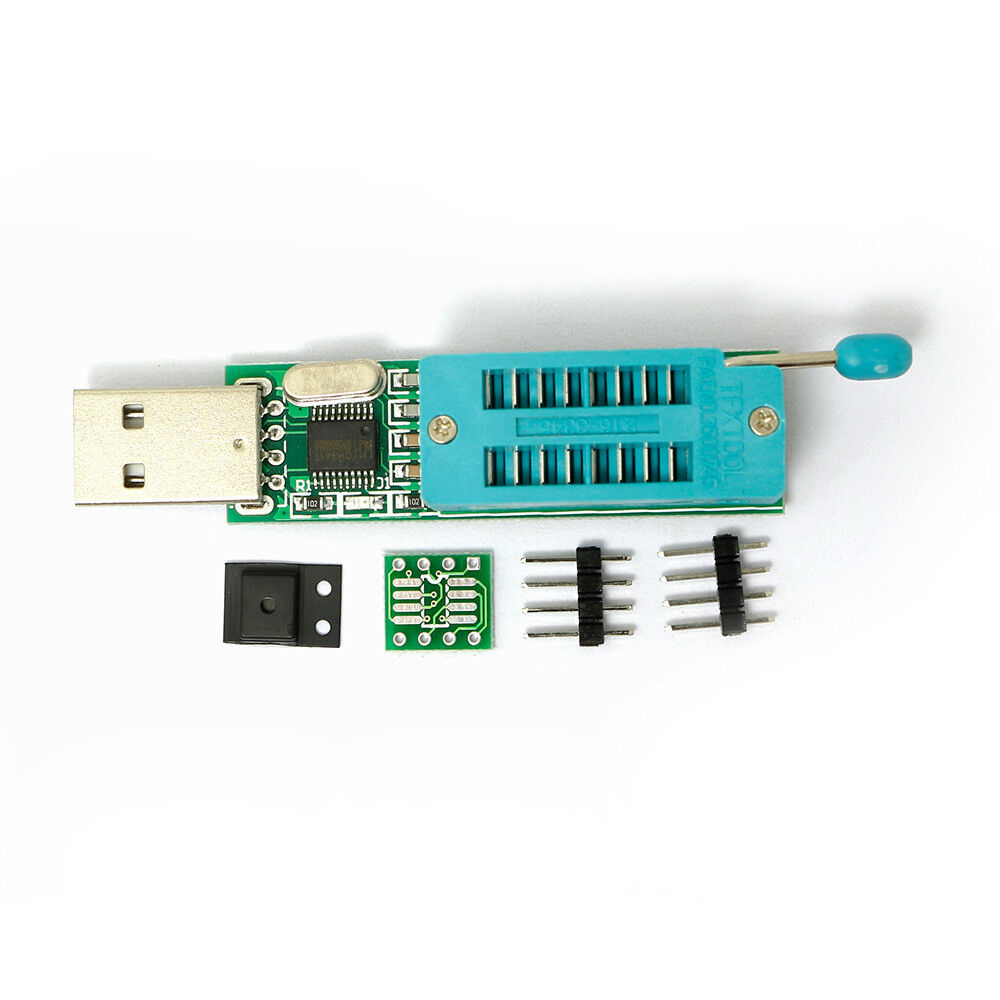

1pc EEPROM Programmer
1pc SSOP to DIP Block
1pc 24C02 Chip
