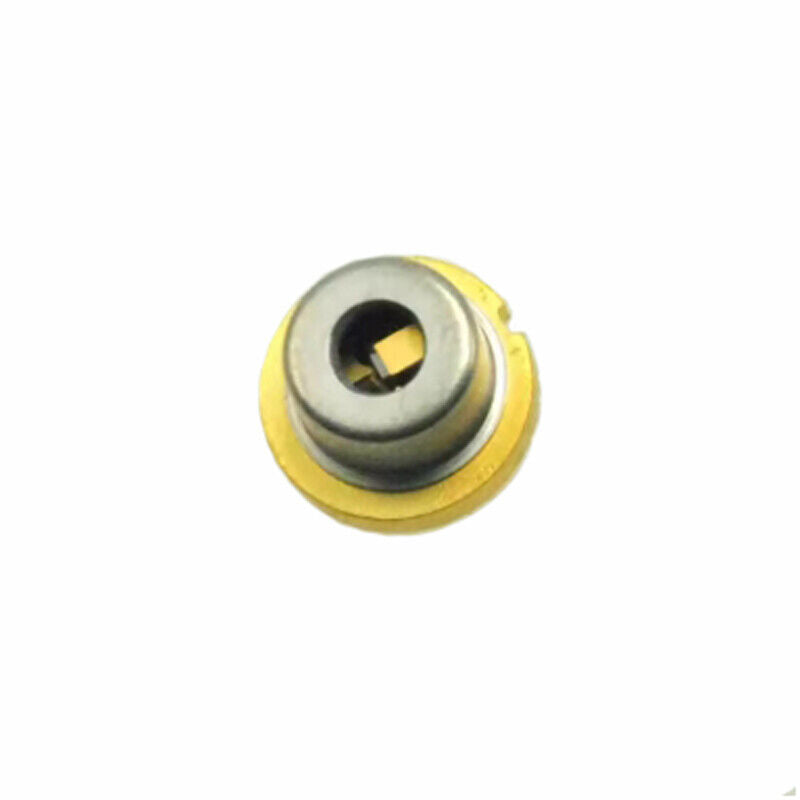

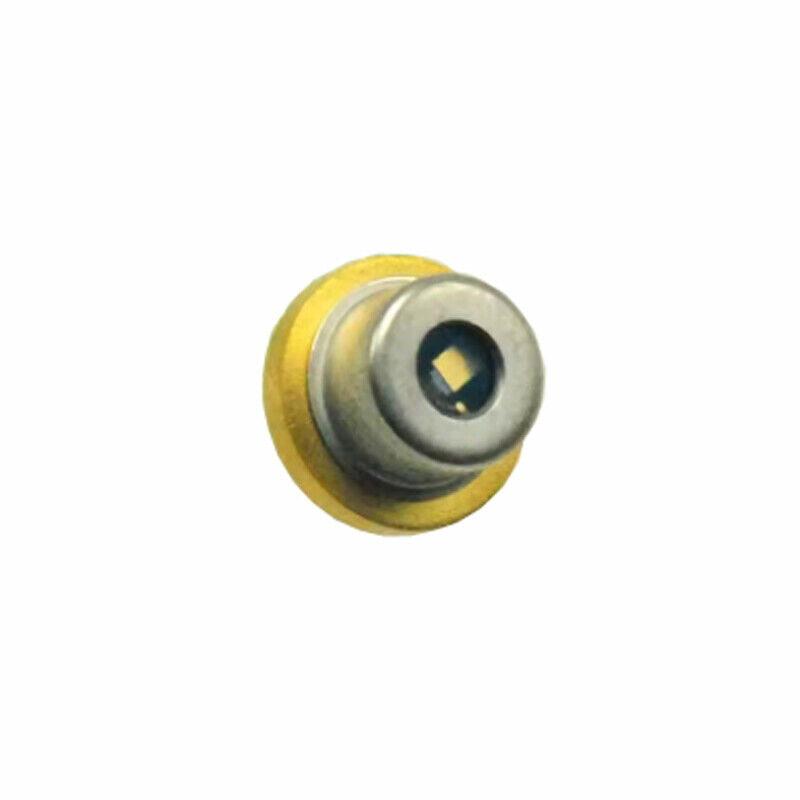

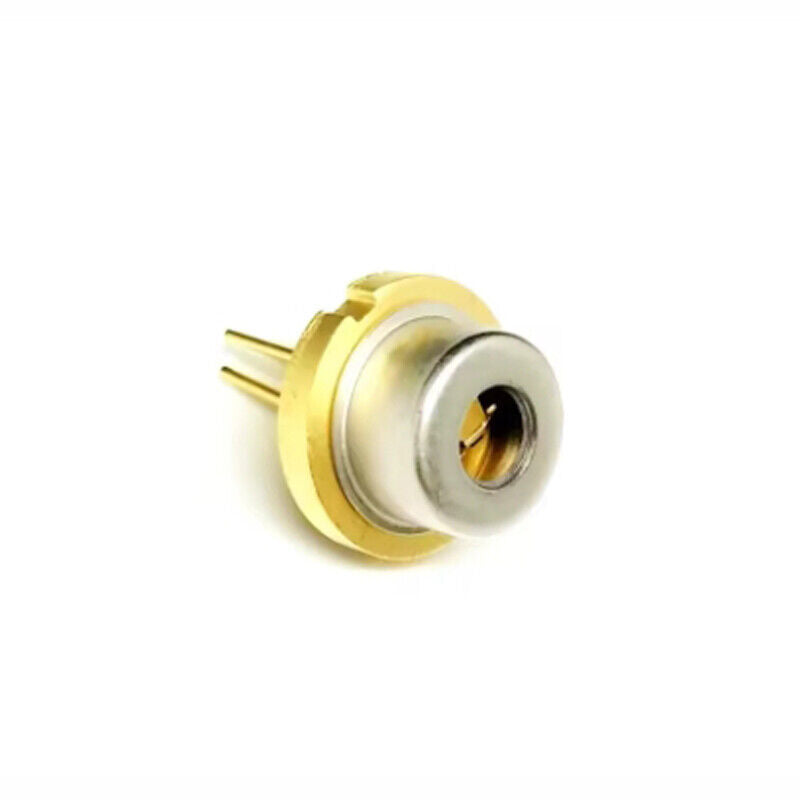

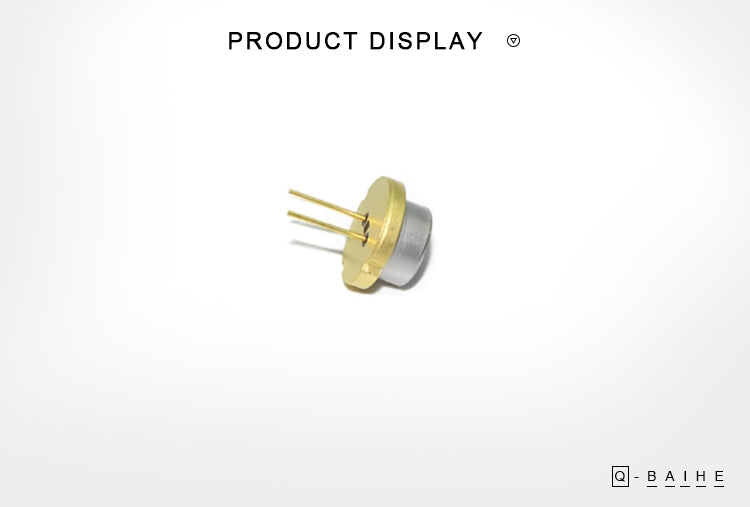

GH05C01B9G 9mm 520nm 1000mW Green Powerful Laser Diode

Features:

Model No.: GH05C01B9G
Wavelength:520nm(±10nm)
CW Output Power: 1W
Reverse Voltage: 2V
Operating Voltage: 5.4-6.5V
Threshold Current: 0.18A-0.3A
Operating Current: 1.4-1.79A
Package Type:9mm
Operating Temperature: 0℃~60℃

Note：

Laser diode cannot be directly conducted to power supply, it must be welded to driver board and the laser diode itself must be installed into LD heatsink for cooling before connected to power supply.

Package:

1pc GH05C01B9G 9mm 520nm 1000mW Green Powerful Laser Diode
