| Title： |

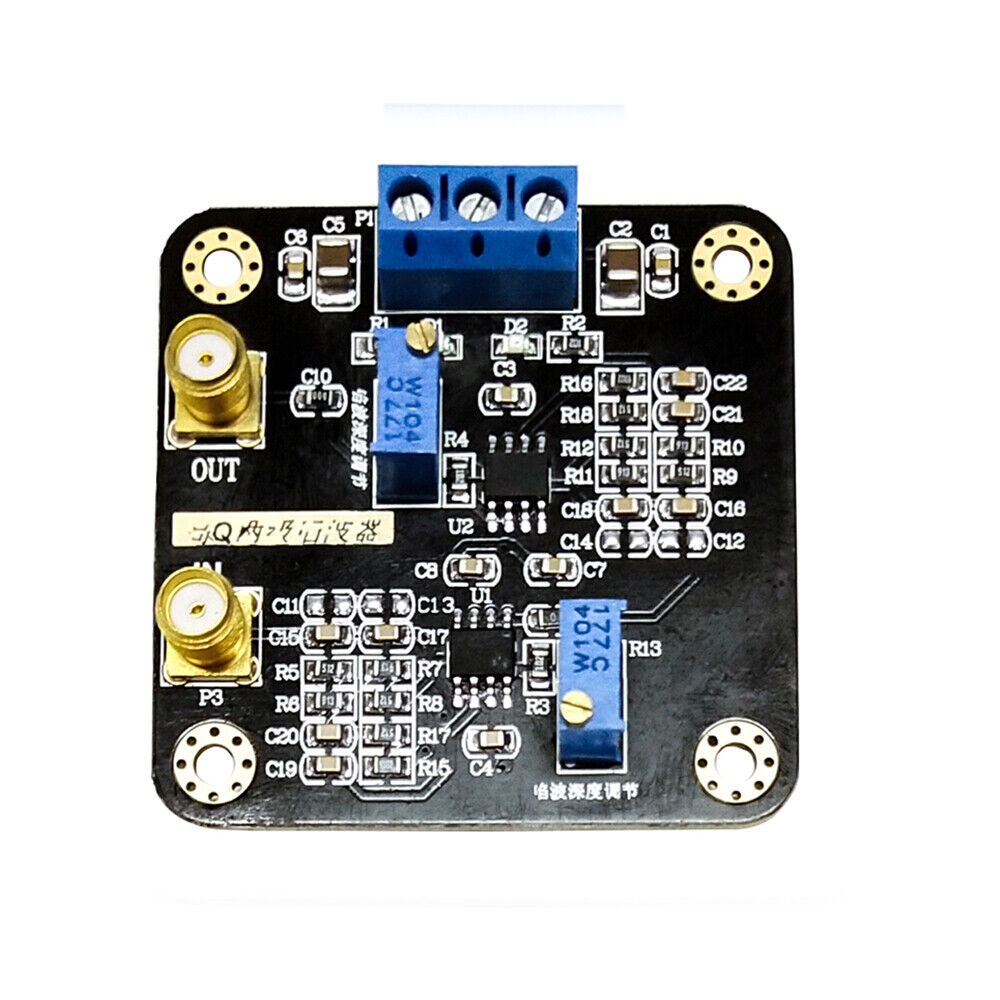

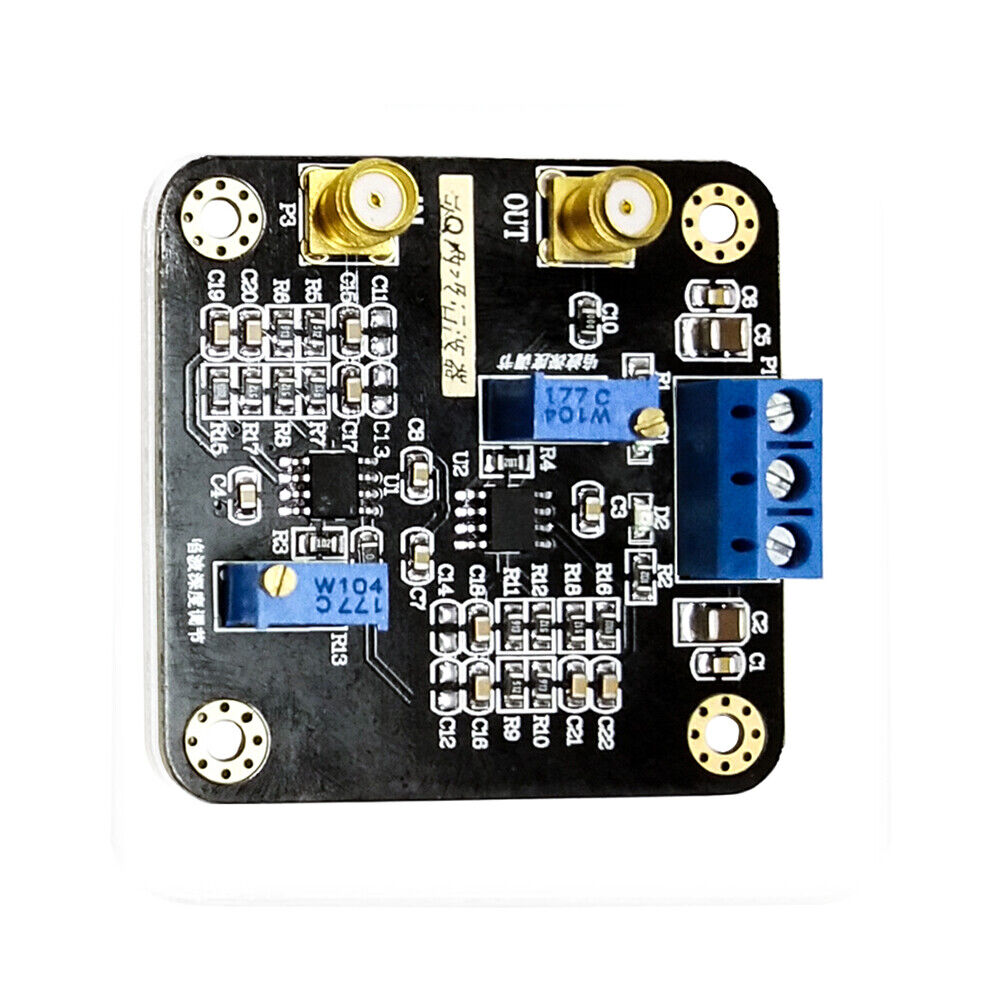

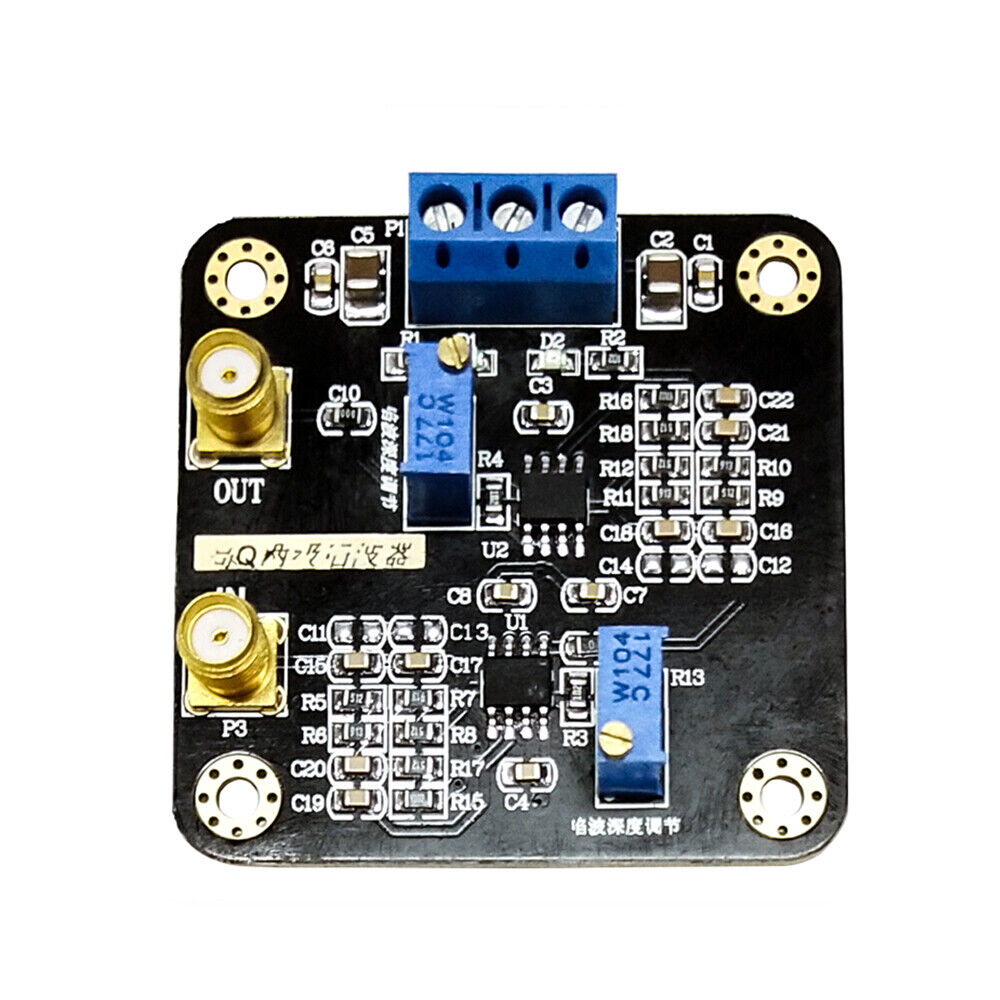

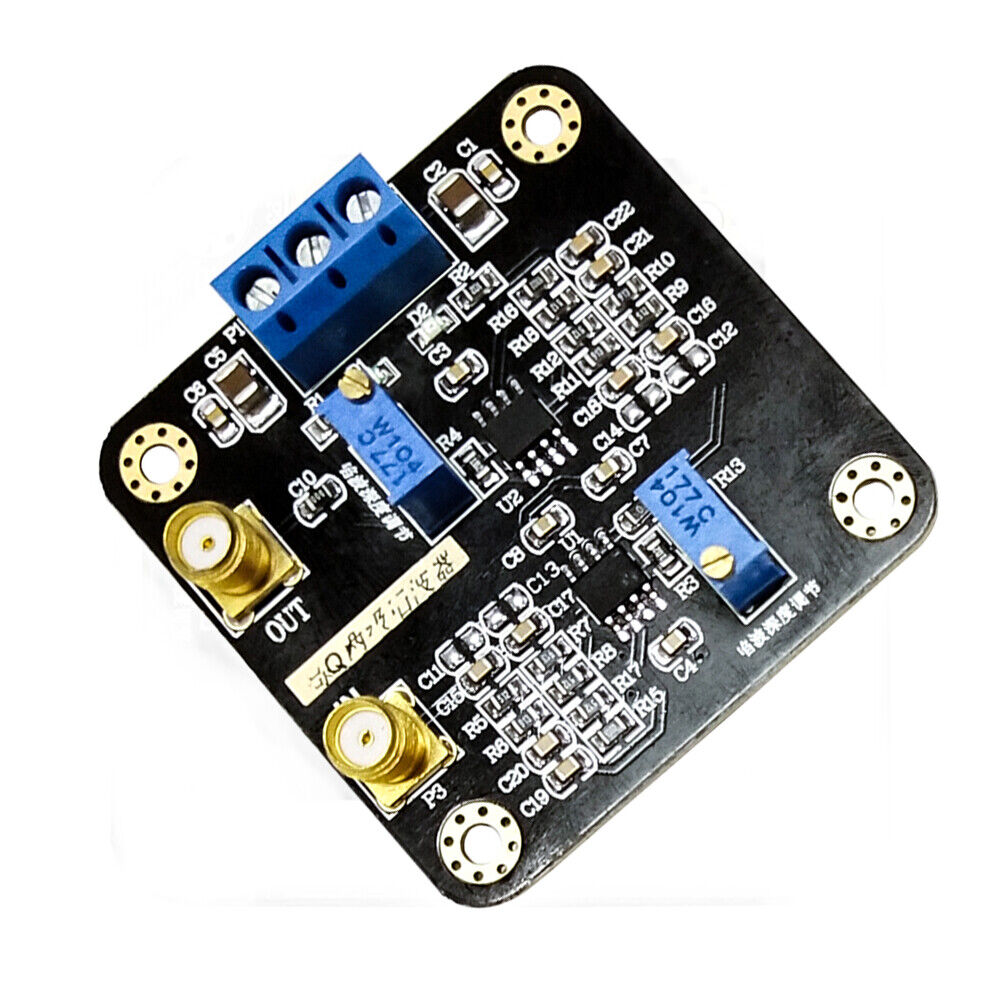

High Q Notch Filter Module 50Hz Power Frequency Signal Conditioning Customizable Notch Frequency |
| Module model: |
50Hz Notch Filter |
Module type: |
Analog filter |
| Supply voltage: |
±5V-±15V |
Module current: |
29mA (Max) |

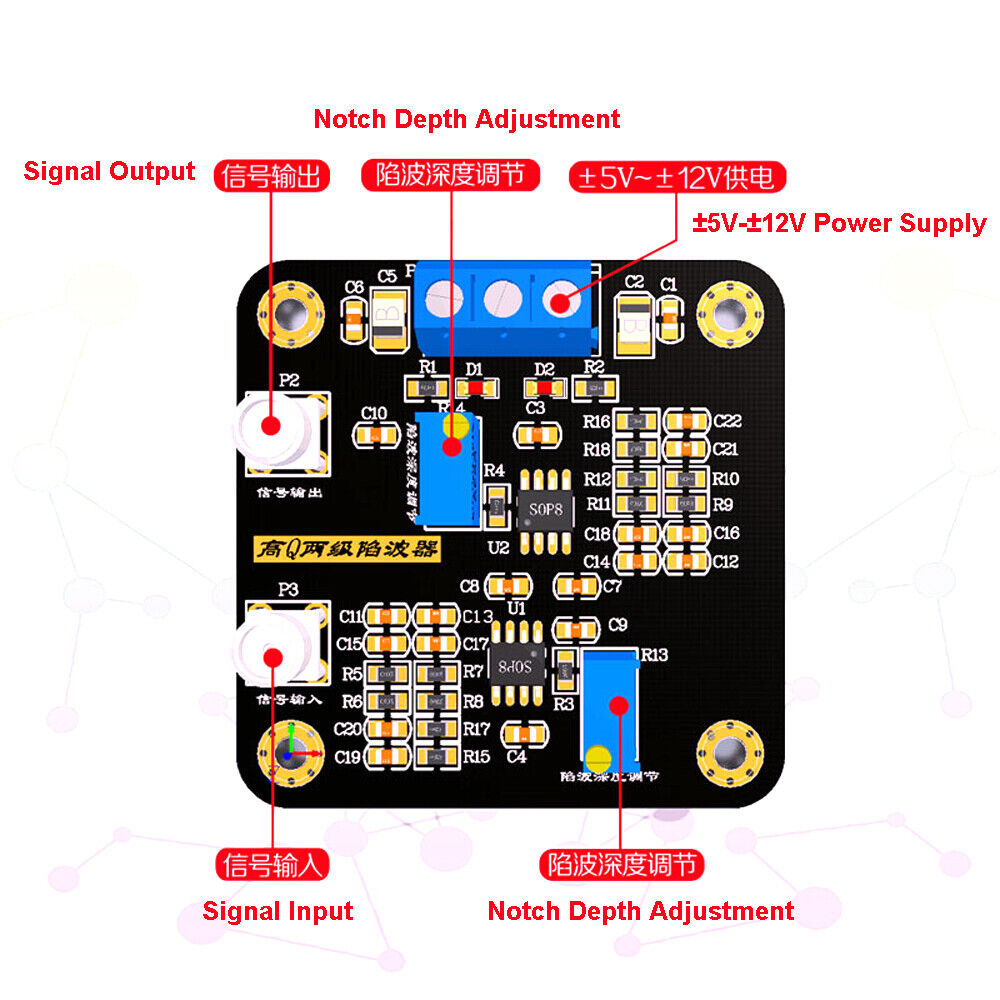

| Module control method: |
potentiometer |
Filter type: |
Notch filter |
| Notch center frequency range: |
50Hz (±3Hz), due to capacitor resistance tolerance |
Input signal form: |
single-ended |
| Input signal voltage range: |
less than positive and negative power supply |
Input frequency range: |
DC-1MHz |
| Module gain: |
None |
Notch depth: |
40dB (Max), the greater the notch depth, the greater the impact on both side frequencies |
| Module input and output interface: |
SMA, 24-hour salt spray plating anti-oxidation |
Module protection: |
No reverse connection protection, unlimited current protection |

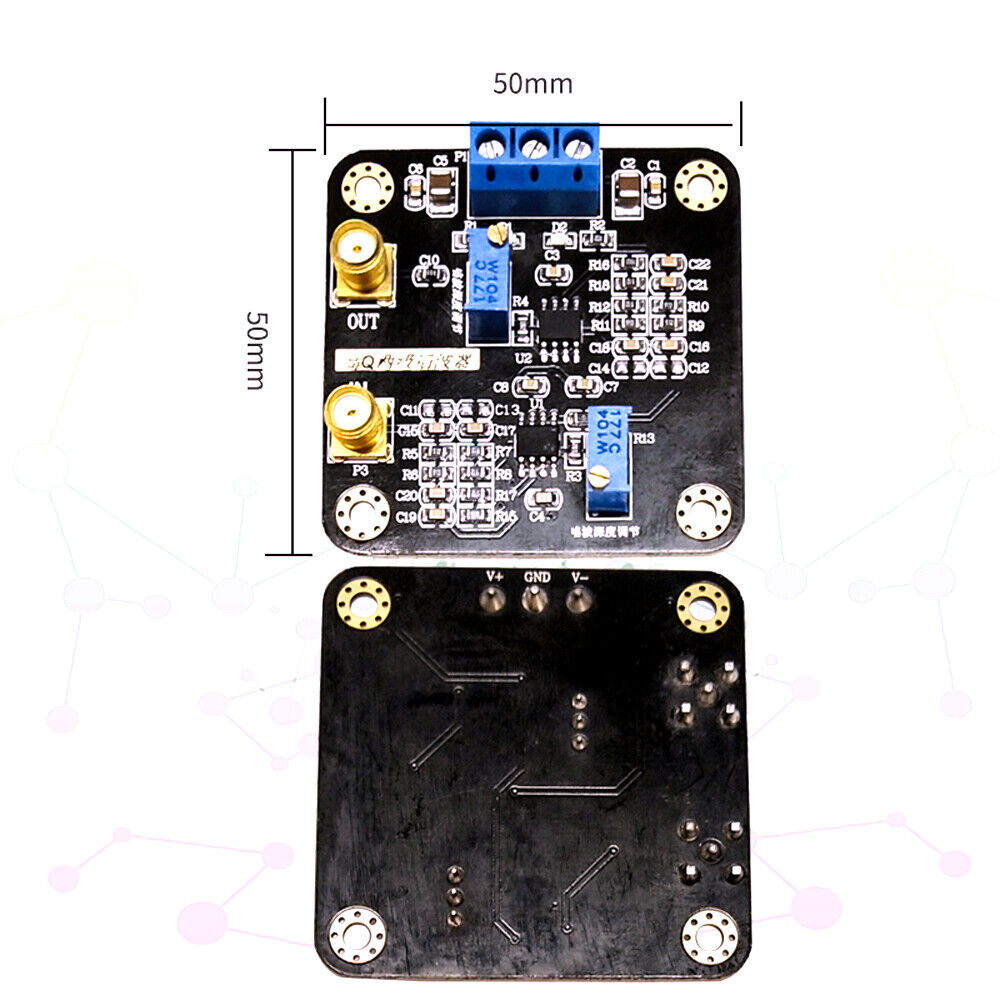

| Module specification: |
50X50X15mm |
Module working temperature: |
0-75℃ (civilian grade) |
| Module weight: |
16g |
|
|
| Package: |
1*Analog Filter |
